產品名稱：
|
新漢網絡安全——NSA 3111
|
|
型 號：
|
NSA 3111
|
|
價 格：
|
0.00
|
|
品 牌：
|
2562
|
|
|
|
Intel® Core™ 2 Duo/Pentium® Dual-Core/Celeron® 1U上架式整機，帶6+8網口
產品亮點
機箱：DTX-105C
主板：NSB3111
CPU： INTEL Q9300
內存：4G DDR2
硬盤：500G SATA
帶能源：300W電源(可選配6個千兆網口)
4個intel 82574L千兆網口（支持BY PASS功能）,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個PCI插槽，1個MINI-PCI插槽�？蓴U展網口模塊，具體可擴展規(guī)格：2個電口2個光口、4個電口、4個光口、4個電口4個光口、8個電口、8個光口。
特點詳情
1U機架式網絡安全平臺，整機尺寸426mmx 450mm x 44mm，主板采用INTELG41芯片組，CPU可采用INTEL酷睿四核處理器，整機提供1個PCI擴展插槽。機器支持BYPASS功能，網絡喚醒功能。機箱支持前端LCD模塊。
|
Specifications |
|
主板 |
- NSB 3111
- Support Intel® Core™ 2 Duo/Pentium® Dual Core/Celeron® Processors in 775-pin, LGA775 package
- Support 800/1066/1333 MHz FSB
- Intel® G41 and ICH7R Chipset
|
|
內存 |
- 2 x 240-pin DDR2 800/667 DIMM Sockets, up to 4GB Non-ECC DDR2 SDRAM
|
|
網絡特點 |
- Onboard 6G LAN and One LAN Modular
- Lan Chipset: Intel® 82574L
- Support 10/100/1000 link speed
- LAN BYPASS: by model *Please see module list information in Datasheet (PDF)
|
|
擴展 |
- Support 1 x PCI Slot
- Support 1 x Mini-PCI Slot
|
|
I/O接口-前面板 |
- HDD access/Power/GPIO status LEDs
- 2 x USB 2.0 ports
- 1 x RJ45 type Console port
- 1 x software button
- 4~6 Copper LAN ports
- 1 x LAN Module bay
|
|
I/O接口-后面板 |
- 1 x Expansion slot
- 1 x power switch
|
|
設置 |
- 1 x on-board CompactFlash socket
- 1 x Internal 2.5" HDD driver bay
- 1 x Internal 44 pin IDE interface
|
|
電源輸入 |
- Support 200W ATX Power Supply
|
|
尺寸規(guī)格 |
- Chassis Dimension: 426mm x 450mm x 44mm
- Carton Dimension: 560mm x 640mm x 200mm
|
|
認證 |
- CE approval
- FCC Class A
- UL
|

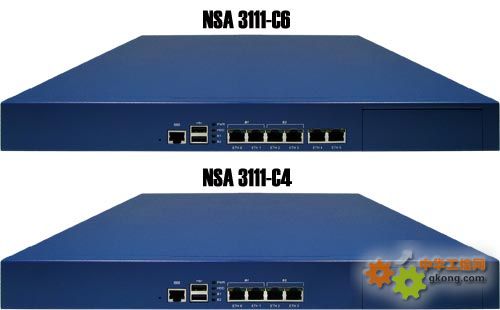

訂購信息
- NSA 3111-C6 (P/N: 10S00311101X0)Support Intel® Core™ 2 Duo/Pentium® Dual-Core/Celeron®, 2 DDR2 memory slots, 6 Gigabit Ethernet LAN ports, Compactflash Socket, VGA, USB port, One PCI Expansion slot, One LAN Modular
- NSA 3111-C4 (P/N: 10S00311100X0)Support Intel® Core™ 2 Duo/Pentium® Dual-Core/Celeron®, 2 DDR2 memory slots, 4 Gigabit Ethernet LAN ports, Compactflash Socket, VGA, USB port, One PCI Expansion slot, One LAN Modular
|
|
|
